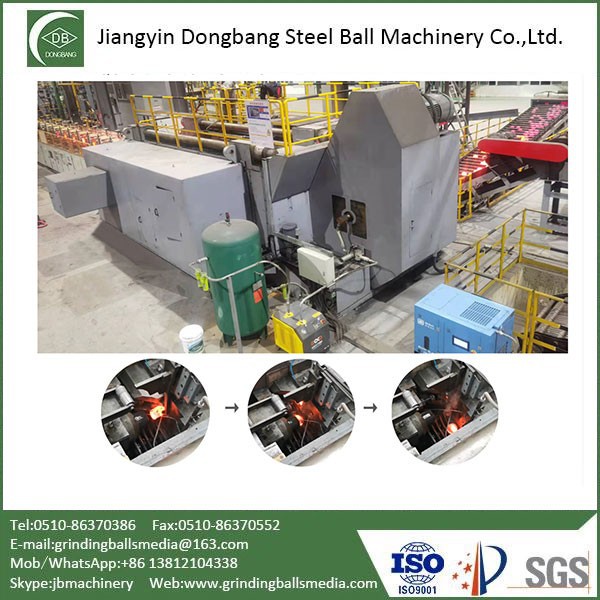

Quick Forging Machines
D100MM-140MM Quick Forging Machines, Integrating multiple functions, including hot cutting function and forge shaping function. The entire machine can operate stably at high speed. High speed：20-40 balls per minute, Ball surfance hardness: 57-62HRC, Ball core hardness: 54-60HRC, Impact toughness: ＞20 J/CM2.
Introduction
Quick Forging Machines, Integrating multiple functions, including hot cutting function and forge shaping function. The entire machine can operate stably at high speed.
Specifications
D100MM-140MM Quick Forging Machines
High speed：20-40 balls per minute
BALL SURFACE HARDNESS: 57-62HRC
BALL CORE HARDNESS: 54-60HRC
IMPACT TOUGHNESS: ＞20 J/CM2
Product Detail
| Product name | Quick Forging Machines |
| Application | Grinding ball for Mineral processing SAG ball mill |
| Original | Jiangyin, China |
| Certification | ISO9001, ISO14001, OHSAS18001 etc. |
| Price | Negotiable |
| Material | Q235, 45# |
| Voltage | 380V 50Hz, or the voltage can be as local demand |
| Payment term | TT, LC |
| Delivery date | Negotiable |
| Packing | export standard |
| Market | Middle East/ Africa/Asia/South America/Europe/North America |
| Warranty | 1 year |
| MOQ | 1 set |
| Delivery time | 6-8 months per set |
Features
D100MM-140MM Quick Forging Machines:
OUTPUT CALCULATION
|
Nominated Ball Diameter mm |
Balls/min |
Ball Weight Kg |
Hour Capacity Ton |
Day Capacity (10 hours/day) Ton |
Annual Capacity (340 days/year) Ton |
|
100 (4") |
35 |
4.108 |
8.627 |
86.27 |
29332.3 |
|
120(4.7") |
30 |
5.468 |
12.778 |
127.78 |
43445.3 |
|
125 (5") |
25 |
8.024 |
12.036 |
120.36 |
40921.2 |
|
140 (5.5") |
20 |
11.273 |
13.527 |
135.27 |
45993.1 |
STEEL BALL SPECIFICATIONS
|
NOMINAL DIAMETER MM(INCH) |
DIAMETER TORELANCE MM |
SURFACE HARDNESS HRC |
CORE HARDNESS HRC |
|
100 (4") |
+3 -2 |
59-62 |
56-60 |
|
120 (4.7") |
+3 -3 |
59-62 |
56-60 |
|
125 (5") |
+4 -4 |
58-60 |
55-57 |
|
140 (5.5") |
+4 -4 |
57-59 |
54-57 |
Production Steps
- Steel rod inspection
- Steel rod heating
- Quick Forging Machines
- Ball rounder machine
- Strong cooling
- Ring furnace (Ball Reheating Furnace)
- Quenching
- Tempering
Advantages
- We have many experience on OEM work.
- We can customize special hardware as customer demand.
- Technical service for assembling.
- Well-equipped with extensive sales network.
- Advanced Production equipment and production technique.
- Competitive Price (Factory direct price) with our good service.
- Different designs are available according to customer requests.
- Excellent quality testing equipment, 100% inspection on critical .
