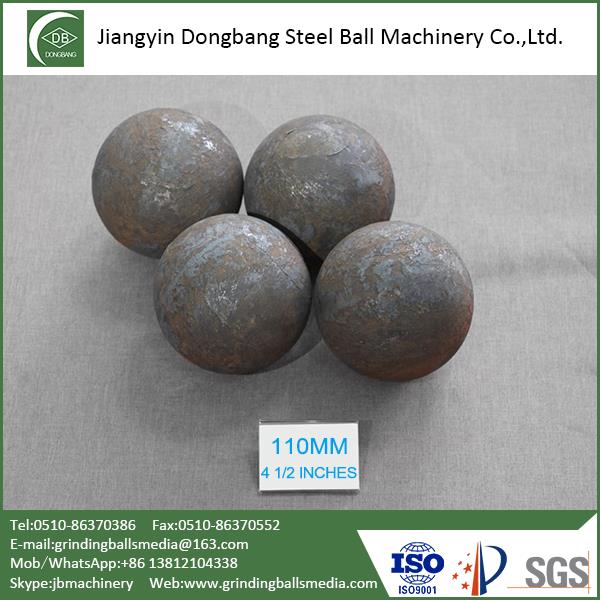

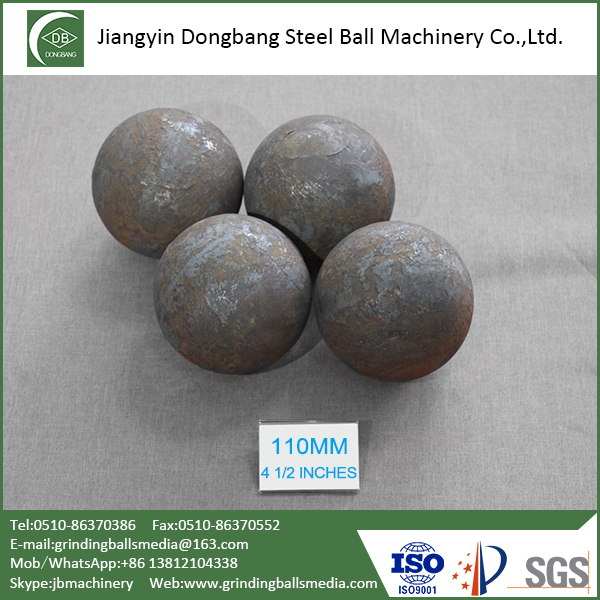

110mm Grinding Balls Production for Iron Ore Mine

110mm grinding balls production for iron ore mine, Produciton Method: Quick hammer + rolling, promise even volume hardness: 58-62HRC and impact toughness: ≥22 J/CM2.

Send Inquiry

Chat Now

110mm Grinding Balls Production For Iron Ore Mine Introduction
110mm grinding balls production for iron ore mine, Produciton Method: Quick hammer + rolling, promise even volume hardness: 58-62HRC and impact toughness: ≥22 J/CM2.

Technical Datas
Application: 110mm Grinding Balls Production For Iron Ore Mine
Grinding ball size for iron ore mine production: 110mm

Certification	ISO9001, ISO14001, OHSAS18001 etc.
Original	Jiangsu, China
Price	Negotiable
Payment term	TT, LC
Delivery date	Negotiable
Packing	ton bag or Iron drum

Major Market: Middle East/ Africa/Asia/South America/Europe/North America
MOQ: 50 tons each size(2x20'GP)
Raw material: Alloy Steel rod
Performance

Steel Rod Type: B3, Chemical Comments
C	Si	Mn	P	S	Cr
0.61-0.65	1.73-1.80	0.73-0.80	≤0.020	≤0.015	0.80-0.88
Ni	Cu	Mo	Alt	V
≤0.25	≤0.20
100-125mm Grinding Balls Production For Iron Ore Mine Quality Performance
Ball Size	Surface Hardness	Core Hardness	Volume Hardness	Impact Toughness
100mm	60-62 HRC	58-60 HRC	58-62 HRC	≥22 J/CM2
110mm	60-62 HRC	58-60 HRC	58-62 HRC	≥22 J/CM2
120mm	60-62 HRC	58-60 HRC	58-62 HRC	≥24 J/CM2
125mm	60-62 HRC	58-60 HRC	57-61 HRC	≥26 J/CM2
100-125mm Grinding Ball Produciton Method: Quick hammer + rolling
