Milling Media Production Line Introduction
Milling media production line, designed by Jiangyin Dongbang, help you to set up your own production line with best technology!
Technical Datas
Application: Set up your Ball Mill Grinding Media Production Line, to supply the ball mill grinding media to your mine clients who consume grinding media everyday.

                                                       Price:

Negotiable

Payment term:

TT, LC

Packing:

Export standard packing

Original:

Jiangyin, Jiangsu, China

Delivery date:

Negotiable

Certification:

ISO9001, ISO14001, OHSAS18001

Major Market:

Worldwide

Min Order Quantity:

1 Full Line

Production Method:

Hot Screw Rolling

Ball Size Production Range:

25mm to 40mm; 40mm to 60mm;
     60mm to 80mm;

For example, we design the normal speed of lines as below:

1)25-40mm Line:




     NOMINAL DIAMETER
     (MM)  (INCHES)

THEORETICAL
     DIAMETER
     (MM)

SINGLE
     BALL
     WEIGHT
     (GRAMS)

SPEED
     PER
     MINUTE
     (PCS/MIN)

HOUR
     OUTPUT
     (KGS/HOUR)

25

1

26.0

72

120

518.4

30

1 1/4

31.2

125

110

825

40

1 1/2

41.6

296

100

1776

2)40-60mm Line:




NOMINAL DIAMETER
     (MM)  (INCHES)

THEORETICAL
     DIAMETER
     (MM)

SINGLE
     BALL
     WEIGHT
     (GRAMS)

SPEED
     PER
     MINUTE
     (PCS/MIN)

HOUR
     OUTPUT
     (TONS/HOUR)

40

1 1/2

41.6

296

80

1.42

50

2

52.0

578

70

2.42

60

2 1/2

62.4

999

60

3.59

3)60-80mm Line:



     NOMINAL DIAMETER
     (MM)  (INCHES)

THEORETICAL
     DIAMETER
     (MM)

SINGLE
     BALL
     WEIGHT
     (GRAMS)

SPEED
     PER
     MINUTE
     (PCS/MIN)

HOUR
     OUTPUT
     (TONS/HOUR)

60

2 1/2

62.4

999

60

3.596

70

2 3/4

72.8

1,586

55

5.233

76

3

79

1,803

50

5.4

80

3 1/4

83.2

2,367

45

6.39

Note: If you have special request on speed or hour output, pls do not hesitate to let me know!

Designed Flow


The entire line is composed by:

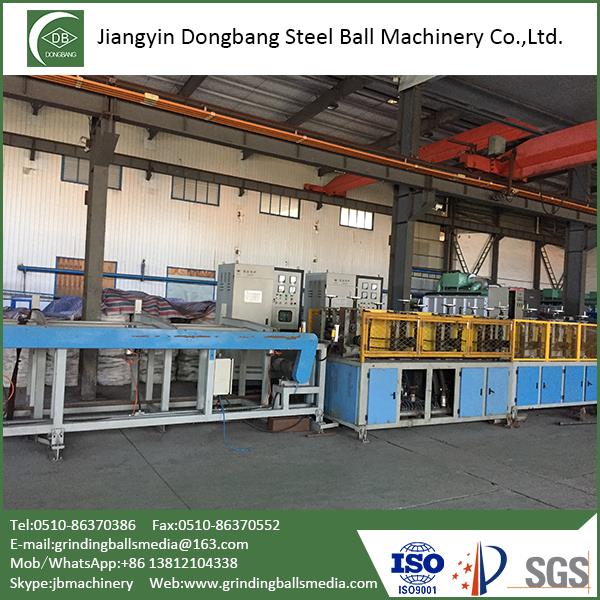

1. Heating system: Induction furnace

Energy media: Electricty;

Purpose: Heat on the round steel rod to requested temperature like 850-950 degrees upon different ball size;

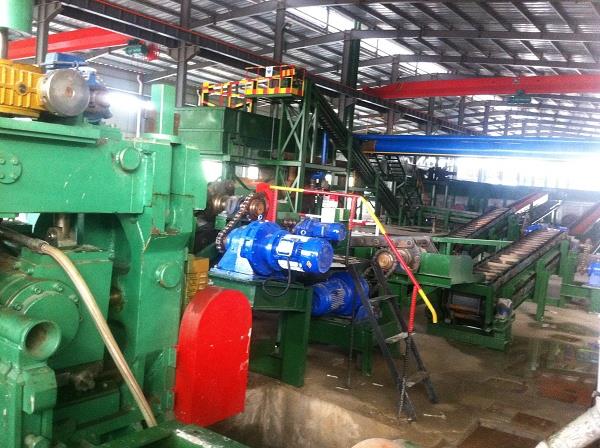

2.Hot rolling machine

Purpose: Make the balls from heated steel rod by screw rolling machine and unique mold;

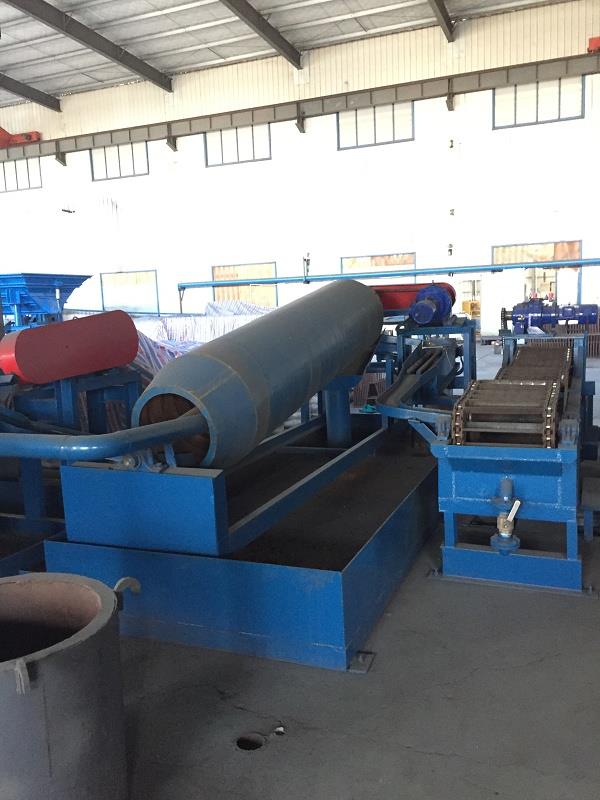

3.Slow cooling system

Purpose: Cool the balls after hot rolled to right temperature before quenching;

4. Quenching system

Purpose: Send the “cooled” balls to quenching system for water quenching treatment & 2nd quenching by our unique design quenching chemical;

5.Tempering furnace: online automatic continuous tempering furnace, or box type tempering furnace

Purpose: Let the balls after quenching treatment get tempering treatment in our special designed tempering furnace

25-40mm: You can use box type tempering furnace, OR tempering drum;

40-60mm: Must use box type tempering furnace;

60-80mm: Use online automatic continuous tempering furnace

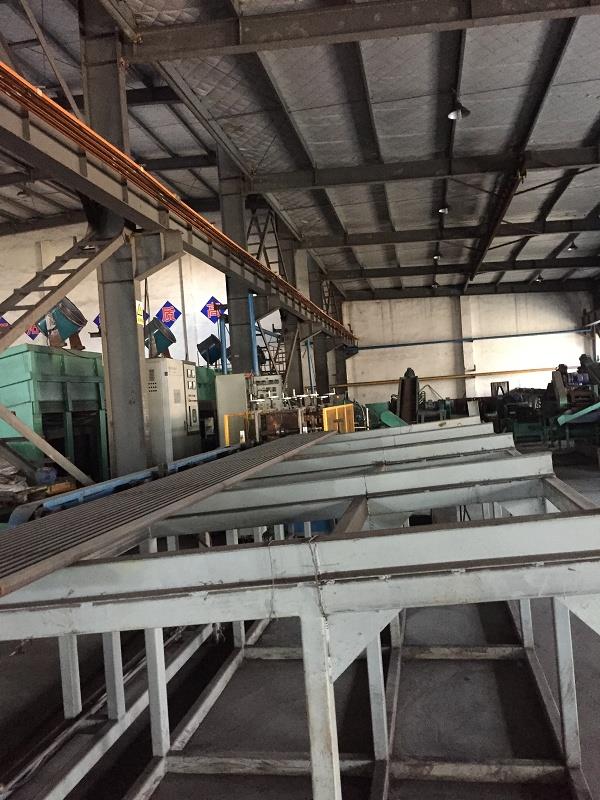

6. Cooling plate

Purpose: The big plate will stock the balls after tempering, let the ball have enough time to cool to room temperature

7. Packing
