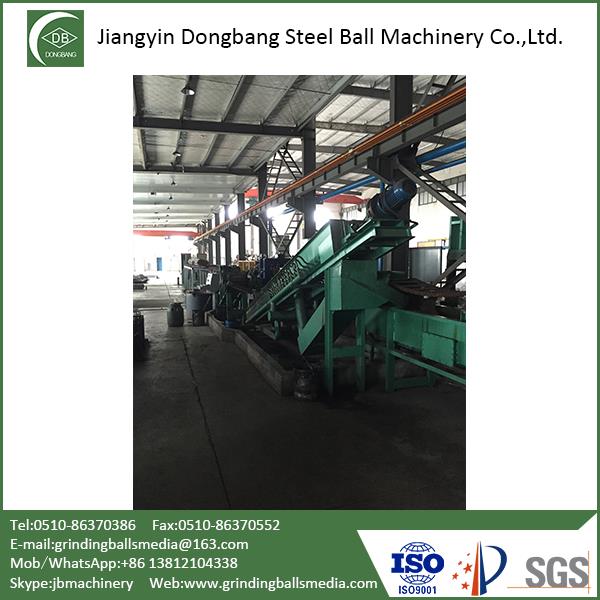

Forged Steel Grinding Media Ball Production Line

Forged Steel Grinding Media Ball Production Line Introduction Forged steel grinding media ball production line, designed by Jiangyin Dongbang, help you to set up your own production line at higher speed! Technical Datas Application: Set up your Own Designed Grinding Media Production Line, to...

Inquiry

  • Product Details

Forged Steel Grinding Media Ball Production Line Introduction
Forged steel grinding media ball production line, designed by Jiangyin Dongbang, help you to set up your own production line at higher speed!
Technical Datas
Application: Set up your Own Designed Grinding Media Production Line, to supply the ball mill grinding media to your mine clients who consume grinding media every week.

                                              Certification:

ISO9001, ISO14001, OHSAS18001

Original:

Jiangyin, Jiangsu, China

Price:

Negotiable

Payment term:

TT, LC

Packing:

Export standard packing

Delivery date:

Negotiable

Major Market:

Worldwide

Min Order Quantity:

1 Full Line

Production Method:

Hot Screw Rolling

Ball Size Production Range:

25mm to 40mm;
     40mm to 60mm;

For example, we design the normal speed of lines as below:
25-40mm Line:


     NOMINAL DIAMETER
     (MM)  (INCHES)

THEORETICAL
     DIAMETER
     (MM)

SINGLE
     BALL
     WEIGHT
     (GRAMS)

SPEED
     PER
     MINUTE
     (PCS/MIN)

HOUR
     OUTPUT
     (KGS/HOUR)

25

1

26.0

72

120

518.4

30

1 1/4

31.2

125

220

1650

40

1 1/2

41.6

296

200

3552

2)40-60mm Line:


     NOMINAL DIAMETER
     (MM)  (INCHES)

THEORETICAL
     DIAMETER
     (MM)

SINGLE
     BALL
     WEIGHT
     (GRAMS)

SPEED
     PER
     MINUTE
     (PCS/MIN)

HOUR
     OUTPUT
     (KGS/HOUR)

40

1 1/2

41.6

296

160

2840

50

2

52.0

578

140

4840

60

2 1/2

62.4

999

120

7180

Note: If you have special request on speed or hour output, pls do not hesitate to let me know!

Designed Flow


The entire line is composed by

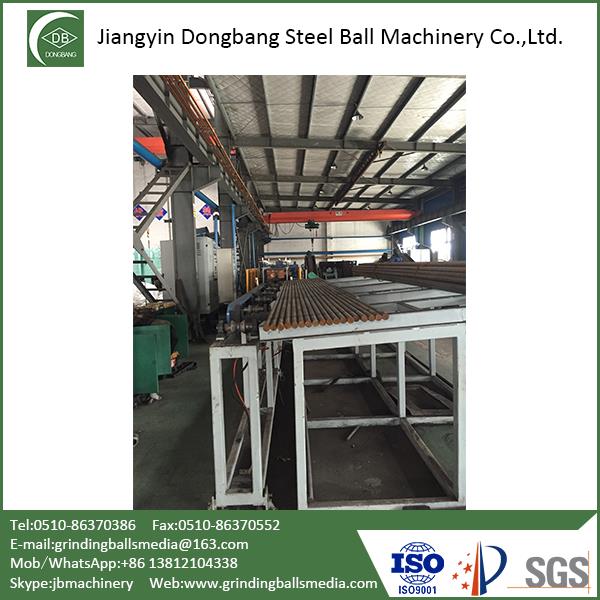

1.Heating system: Induction furnace

Energy media: Electricity;

Purpose: Heat on the round steel rod to requested temperature like 850-950 degrees upon different ball size;

2.Hot rolling machine

Purpose: Make the balls from heated steel rod by screw rolling machine and unique mold;

3.Slow cooling system

Purpose: Cool the balls after hot rolled to right temperature before quenching;

4. Quenching system

Purpose: Send the “cooled” balls to quenching system for water quenching treatment & 2nd quenching by our unique design quenching chemical;

5.Tempering furnace: Box type tempering furnace

Purpose: Let the balls after quenching treatment get tempering treatment in our special designed tempering furnace

25-40mm: You can use box type tempering furnace, OR tempering drum;

40-60mm: Must use box type tempering furnace;


6. Cooling plate

Purpose: The big plate will stock the balls after tempering, let the ball have enough time to cool to room temperature

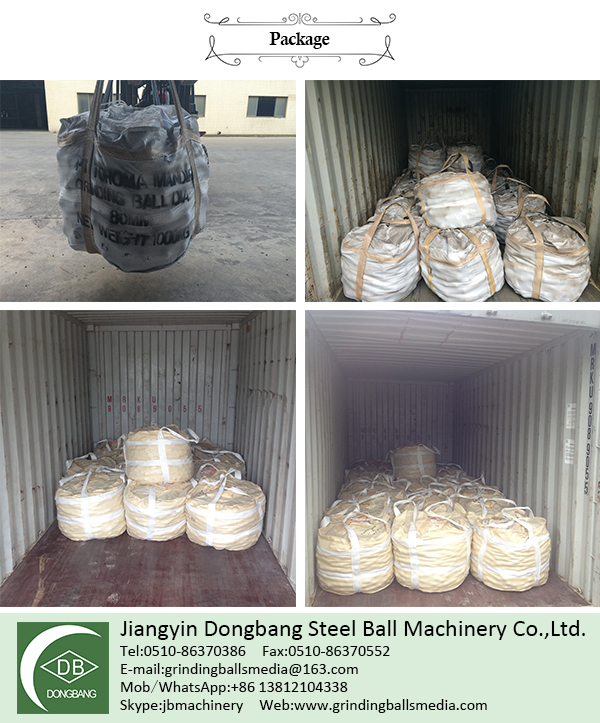

7. Packing
